Example Lineage Events
Simple Examples
START event with single input
This is a START event with a single PostgreSQL input dataset.
{
"eventType": "START",
"eventTime": "2020-12-28T19:52:00.001+10:00",
"run": {
"runId": "d46e465b-d358-4d32-83d4-df660ff614dd"
},
"job": {
"namespace": "workshop",
"name": "process_taxes"
},
"inputs": [{
"namespace": "postgres://workshop-db:None",
"name": "workshop.public.taxes"
}],
"producer": "https://github.com/OpenLineage/OpenLineage/blob/v1-0-0/client"
}
COMPLETE event with single output
This is a COMPLETE event with a single PostgreSQL output dataset.
{
"eventType": "COMPLETE",
"eventTime": "2020-12-28T20:52:00.001+10:00",
"run": {
"runId": "d46e465b-d358-4d32-83d4-df660ff614dd"
},
"job": {
"namespace": "workshop",
"name": "process_taxes"
},
"outputs": [{
"namespace": "postgres://workshop-db:None",
"name": "workshop.public.unpaid_taxes"
}],
"producer": "https://github.com/OpenLineage/OpenLineage/blob/v1-0-0/client"
}
Complex Examples
START event with Facets (run and job)
This is a START event with run and job facets of Apache Airflow.
{
"eventType": "START",
"eventTime": "2020-12-28T19:52:00.001+10:00",
"run": {
"runId": "d46e465b-d358-4d32-83d4-df660ff614dd"
"facets": {
"airflow_runArgs": {
"_producer": "https://github.com/OpenLineage/OpenLineage/tree/0.10.0/integration/airflow",
"_schemaURL": "https://raw.githubusercontent.com/OpenLineage/OpenLineage/main/spec/OpenLineage.json#/definitions/BaseFacet",
"externalTrigger": true
},
"nominalTime": {
"_producer": "https://github.com/OpenLineage/OpenLineage/tree/0.10.0/integration/airflow",
"_schemaURL": "https://raw.githubusercontent.com/OpenLineage/OpenLineage/main/spec/OpenLineage.json#/definitions/NominalTimeRunFacet",
"nominalStartTime": "2022-07-29T14:14:31.458067Z"
},
"parentRun": {
"_producer": "https://github.com/OpenLineage/OpenLineage/tree/0.10.0/integration/airflow",
"_schemaURL": "https://raw.githubusercontent.com/OpenLineage/OpenLineage/main/spec/OpenLineage.json#/definitions/ParentRunFacet",
"job": {
"name": "etl_orders",
"namespace": "cosmic_energy"
},
"run": {
"runId": "1ba6fdaa-fb80-36ce-9c5b-295f544ec462"
}
}
}
},
"job": {
"namespace": "workshop",
"name": "process_taxes",
"facets": {
"documentation": {
"_producer": "https://github.com/OpenLineage/OpenLineage/tree/0.10.0/integration/airflow",
"_schemaURL": "https://raw.githubusercontent.com/OpenLineage/OpenLineage/main/spec/OpenLineage.json#/definitions/DocumentationJobFacet",
"description": "Process taxes."
},
"sql": {
"_producer": "https://github.com/OpenLineage/OpenLineage/tree/0.10.0/integration/airflow",
"_schemaURL": "https://raw.githubusercontent.com/OpenLineage/OpenLineage/main/spec/OpenLineage.json#/definitions/SqlJobFacet",
"query": "INSERT into taxes values(1, 100, 1000, 4000);"
}
},
},
"inputs": [{
"namespace": "postgres://workshop-db:None",
"name": "workshop.public.taxes"
}],
"producer": "https://github.com/OpenLineage/OpenLineage/blob/v1-0-0/client"
}
COMPLETE event with Facets (dataset)
This is a COMPLETE event with dataset facet of Database table.
{
"eventType": "COMPLETE",
"eventTime": "2020-12-28T20:52:00.001+10:00",
"run": {
"runId": "d46e465b-d358-4d32-83d4-df660ff614dd"
},
"job": {
"namespace": "workshop",
"name": "process_taxes"
},
"outputs": [{
"namespace": "postgres://workshop-db:None",
"name": "workshop.public.unpaid_taxes",
"facets": {
"dataSource": {
"_producer": "https://github.com/OpenLineage/OpenLineage/tree/0.10.0/integration/airflow",
"_schemaURL": "https://raw.githubusercontent.com/OpenLineage/OpenLineage/main/spec/OpenLineage.json#/definitions/DataSourceDatasetFacet",
"name": "postgres://workshop-db:None",
"uri": "workshop-db"
},
"schema": {
"_producer": "https://github.com/OpenLineage/OpenLineage/tree/0.10.0/integration/airflow",
"_schemaURL": "https://raw.githubusercontent.com/OpenLineage/OpenLineage/main/spec/OpenLineage.json#/definitions/SchemaDatasetFacet",
"fields": [
{
"name": "id",
"type": "SERIAL PRIMARY KEY"
},
{
"name": "tax_dt",
"type": "TIMESTAMP NOT NULL"
},
{
"name": "tax_item_id",
"type": "INTEGER REFERENCES tax_itemsid"
},
{
"name": "amount",
"type": "INTEGER NOT NULL"
},
{
"name": "ref_id",
"type": "INTEGER REFERENCES refid"
},
{
"name": "comment",
"type": "TEXT"
}
]
}
}
}],
"producer": "https://github.com/OpenLineage/OpenLineage/blob/v1-0-0/client"
}

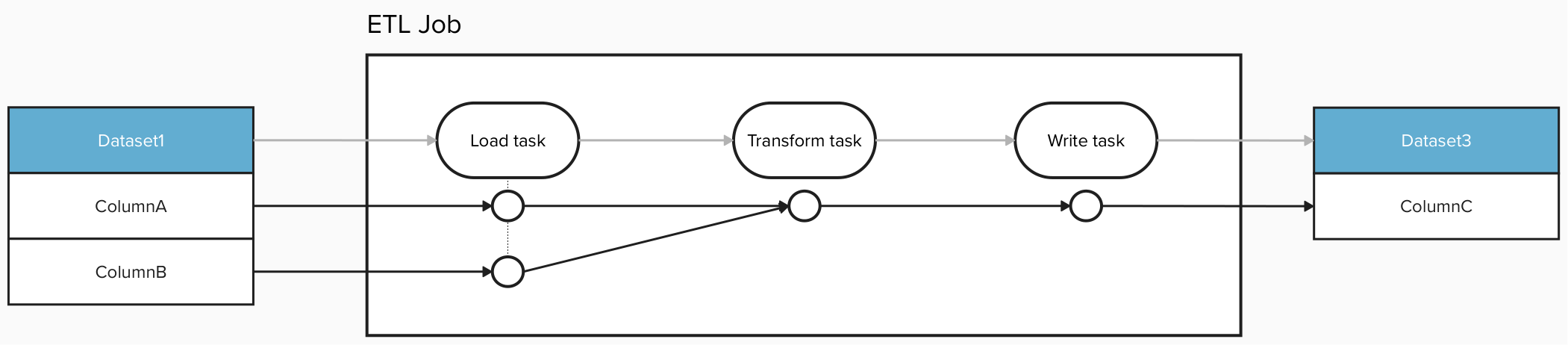

Job-to-Job lineage - ETL Job with several tasks
This example shows how to represent an ETL Job consisting of several tasks. This example combines couple of facets to document the data lineage:
- using Parent Run Facet to document the relation between the ETL job and individual tasks of the job (both the job and the individual tasks are documented by distinct OpenLineage events)
- using Dataset Type Facet to indicate, that the intermediate datasets produced by individual tasks of the ETL job are temporary, and consumers of the OpenLineage event can choose not to represent them (and draw the lineage directly to the next task instead).
- using Column Level Lineage Facet to document column-level lineage not only between the ETL job and the input/output datasets, but also the detailed transformations on the level of individual steps of the ETL job
The OpenLineage payloads are using the following best practices:
- For Dataset Type Facet, the values
datasetType:= JOB_OUTPUT,subType:= TEMPORARYare used to mark the temporary datasets. - The namespace of the temporary dataset should follow standard naming conventions and reflect where is the temporary dataset stored. If it is in-memory only,
inmemory://can be used. - The name of the temporary dataset can be constructed in various ways, below are a couple of proposed approaches:
- If the temporary dataset is named/identifiable, it's name or ID should be used
- If the temporary dataset doesn't have any name or ID, the name can be constructuded as the Job name with an index or the name of the downstream non-temporary dataset as a suffix (to accommodate Jobs with multiple outputs).
COMPLETE event for Load task
{
"eventTime": "2025-10-24T15:08:00.001+10:00",
"eventType": "COMPLETE",
"producer": "https://github.com/OpenLineage/OpenLineage/blob/v1-0-0/client",
"job": {
"namespace": "<job_namespace>",
"name": "<job_name>.Load task",
"facets": {
"jobType": {
"processingType": "BATCH",
"integration": "example",
"jobType": "ingest_data",
"_producer": "https://github.com/OpenLineage/OpenLineage/blob/v1-0-0/client",
"_schemaURL": "https://openlineage.io/spec/facets/2-0-2/JobTypeJobFacet.json"
},
"documentation": {
"_producer": "https://some.producer.com/version/1.0",
"_schemaURL": "https://github.com/OpenLineage/OpenLineage/blob/main/spec/facets/DocumentationJobFacet.json",
"description": "Ingest data from Data Source.",
"contentType": "text/markdown"
}
}
},
"run": {
"runId": "...",
"facets": {
"parent": {
"job": {
"namespace": "<job_namespace>",
"name": "<job_name>"
},
"run": {
"runId": "<job_run_id>"
}
}
}
},
"inputs": [
{
"namespace": "test://example1.com:443/myDir",
"name": "Dataset1",
"facets": {
"schema": {
"_producer": "https://some.producer.com/version/1.0",
"_schemaURL": "https://openlineage.io/spec/facets/1-1-1/SchemaDatasetFacet.json",
"fields": [
{
"name": "ColumnA",
"type": "string"
},
{
"name": "ColumnB",
"type": "string"
}
]
}
}
}
],
"outputs": [
{
"namespace": "inmemory://",
"name": "Dataset3.Load task",
"facets": {
"datasetType": {
"_producer": "https://some.producer.com/version/1.0",
"_schemaURL": "https://openlineage.io/spec/facets/1-0-0/DatasetTypeDatasetFacet.json",
"datasetType": "JOB_OUTPUT",
"subType": "TEMPORARY"
},
"schema": {
"_producer": "https://some.producer.com/version/1.0",
"_schemaURL": "https://openlineage.io/spec/facets/1-1-1/SchemaDatasetFacet.json",
"fields": [
{
"name": "_0",
"type": "string"
},
{
"name": "_1",
"type": "string"
}
]
},
"columnLineage": {
"_producer": "https://some.producer.com/version/1.0",
"_schemaURL": "https://openlineage.io/spec/facets/1-2-0/ColumnLineageDatasetFacet.json",
"fields": {
"_0": {
"inputFields": [
{
"namespace": "test://example1.com:443/myDir",
"name": "Dataset1",
"field": "ColumnA",
"transformations": [
{
"type": "DIRECT",
"subtype": "IDENTITY",
"description": "",
"masking": false
}
]
}
]
},
"_1": {
"inputFields": [
{
"namespace": "test://example1.com:443/myDir",
"name": "Dataset1",
"field": "ColumnB",
"transformations": [
{
"type": "DIRECT",
"subtype": "IDENTITY",
"description": "",
"masking": false
}
]
}
]
}
}
}
}
}
]
}
COMPLETE event for Transform task
{
"eventTime": "2025-10-24T15:08:00.001+10:00",
"eventType": "COMPLETE",
"producer": "https://github.com/OpenLineage/OpenLineage/blob/v1-0-0/client",
"job": {
"namespace": "<job_namespace>",
"name": "<job_name>.Transform task",
"facets": {
"jobType": {
"processingType": "BATCH",
"integration": "example",
"jobType": "transform_task",
"_producer": "https://github.com/OpenLineage/OpenLineage/blob/v1-0-0/client",
"_schemaURL": "https://openlineage.io/spec/facets/2-0-2/JobTypeJobFacet.json"
},
"documentation": {
"_producer": "https://some.producer.com/version/1.0",
"_schemaURL": "https://github.com/OpenLineage/OpenLineage/blob/main/spec/facets/DocumentationJobFacet.json",
"description": "Transforms input columns using defined business logic.",
"contentType": "text/markdown"
}
}
},
"run": {
"runId": "...",
"facets": {
"parent": {
"job": {
"namespace": "<job_namespace>",
"name": "<job_name>"
},
"run": {
"runId": "<job_run_id>"
}
}
}
},
"inputs": [
{
"namespace": "inmemory://",
"name": "Dataset3.Load task",
"facets": {
"datasetType": {
"_producer": "https://some.producer.com/version/1.0",
"_schemaURL": "https://openlineage.io/spec/facets/1-0-0/DatasetTypeDatasetFacet.json",
"datasetType": "JOB_OUTPUT",
"subType": "TEMPORARY"
},
"schema": {
"_producer": "https://some.producer.com/version/1.0",
"_schemaURL": "https://openlineage.io/spec/facets/1-1-1/SchemaDatasetFacet.json",
"fields": [
{
"name": "_0",
"type": "string"
},
{
"name": "_1",
"type": "string"
}
]
}
}
}
],
"outputs": [
{
"namespace": "inmemory://",
"name": "Dataset3.Transform task",
"facets": {
"datasetType": {
"_producer": "https://some.producer.com/version/1.0",
"_schemaURL": "https://openlineage.io/spec/facets/1-0-0/DatasetTypeDatasetFacet.json",
"datasetType": "JOB_OUTPUT",
"subType": "TEMPORARY"
},
"schema": {
"_producer": "https://some.producer.com/version/1.0",
"_schemaURL": "https://openlineage.io/spec/facets/1-1-1/SchemaDatasetFacet.json",
"fields": [
{
"name": "_0",
"type": "string"
}
]
},
"columnLineage": {
"_producer": "https://some.producer.com/version/1.0",
"_schemaURL": "https://openlineage.io/spec/facets/1-2-0/ColumnLineageDatasetFacet.json",
"fields": {
"_0": {
"inputFields": [
{
"namespace": "<job_namespace>",
"name": "<job_name>.Load task",
"field": "_0",
"transformations": [
{
"type": "DIRECT",
"subtype": "IDENTITY",
"description": "",
"masking": false
}
]
},
{
"namespace": "<job_namespace>",
"name": "<job_name>.Load task",
"field": "_1",
"transformations": [
{
"type": "DIRECT",
"subtype": "IDENTITY",
"description": "",
"masking": false
}
]
}
]
}
}
}
}
}
]
}
COMPLETE event for Write task
{
"eventTime": "2025-10-24T15:08:00.001+10:00",
"eventType": "COMPLETE",
"producer": "https://github.com/OpenLineage/OpenLineage/blob/v1-0-0/client",
"job": {
"namespace": "<job_namespace>",
"name": "<job_name>.Write task",
"facets": {
"jobType": {
"processingType": "BATCH",
"integration": "example",
"jobType": "write_task",
"_producer": "https://github.com/OpenLineage/OpenLineage/blob/v1-0-0/client",
"_schemaURL": "https://openlineage.io/spec/facets/2-0-2/JobTypeJobFacet.json"
},
"documentation": {
"_producer": "https://some.producer.com/version/1.0",
"_schemaURL": "https://github.com/OpenLineage/OpenLineage/blob/main/spec/facets/DocumentationJobFacet.json",
"description": "Writes data into an output dataset.",
"contentType": "text/markdown"
}
}
},
"run": {
"runId": "...",
"facets": {
"parent": {
"job": {
"namespace": "<job_namespace>",
"name": "<job_name>"
},
"run": {
"runId": "<job_run_id>"
}
}
}
},
"inputs": [
{
"namespace": "inmemory://",
"name": "Dataset3.Transform task",
"facets": {
"datasetType": {
"_producer": "https://some.producer.com/version/1.0",
"_schemaURL": "https://openlineage.io/spec/facets/1-0-0/DatasetTypeDatasetFacet.json",
"datasetType": "JOB_OUTPUT",
"subType": "TEMPORARY"
},
"schema": {
"_producer": "https://some.producer.com/version/1.0",
"_schemaURL": "https://openlineage.io/spec/facets/1-1-1/SchemaDatasetFacet.json",
"fields": [
{
"name": "_0",
"type": "string"
}
]
}
}
}
],
"outputs": [
{
"namespace": "test://example3.com:443/myDir",
"name": "Dataset3",
"facets": {
"schema": {
"_producer": "https://some.producer.com/version/1.0",
"_schemaURL": "https://openlineage.io/spec/facets/1-1-1/SchemaDatasetFacet.json",
"fields": [
{
"name": "_0",
"type": "string"
}
]
},
"columnLineage": {
"_producer": "https://some.producer.com/version/1.0",
"_schemaURL": "https://openlineage.io/spec/facets/1-2-0/ColumnLineageDatasetFacet.json",
"fields": {
"ColumnC": {
"inputFields": [
{
"namespace": "<job_namespace>",
"name": "<job_name>.Write task",
"field": "_0",
"transformations": [
{
"type": "DIRECT",
"subtype": "IDENTITY",
"description": "",
"masking": false
}
]
}
]
}
}
}
}
}
]
}
COMPLETE event for the parent ETL job
{
"eventTime": "2025-10-24T15:08:00.001+10:00",
"eventType": "COMPLETE",
"producer": "https://github.com/OpenLineage/OpenLineage/blob/v1-0-0/client",
"job": {
"namespace": "<job_namespace>",
"name": "<job_name>"
},
"run": {
"runId": "<job_run_id>"
},
"inputs": [
{
"namespace": "test://example1.com:443/myDir",
"name": "Dataset1",
"facets": {
"schema": {
"_producer": "https://some.producer.com/version/1.0",
"_schemaURL": "https://openlineage.io/spec/facets/1-1-1/SchemaDatasetFacet.json",
"fields": [
{
"name": "ColumnA",
"type": "string"
},
{
"name": "ColumnB",
"type": "string"
}
]
}
}
}
],
"outputs": [
{
"namespace": "test://example3.com:443/myDir",
"name": "Dataset3",
"facets": {
"schema": {
"_producer": "https://some.producer.com/version/1.0",
"_schemaURL": "https://openlineage.io/spec/facets/1-1-1/SchemaDatasetFacet.json",
"fields": [
{
"name": "ColumnC",
"type": "string"
}
]
},
"columnLineage": {
"_producer": "https://some.producer.com/version/1.0",
"_schemaURL": "https://openlineage.io/spec/facets/1-2-0/ColumnLineageDatasetFacet.json",
"fields": {
"ColumnC": {
"inputFields": [
{
"namespace": "test://example1.com:443/myDir",
"name": "Dataset1",
"field": "ColumnA",
"transformations": [
{
"type": "DIRECT",
"subtype": "IDENTITY",
"description": "",
"masking": false
}
]
},
{
"namespace": "test://example1.com:443/myDir",
"name": "Dataset1",
"field": "ColumnB",
"transformations": [
{
"type": "DIRECT",
"subtype": "IDENTITY",
"description": "",
"masking": false
}
]
}
]
}
}
}
}
}
]
}
